Heavy Duty Industrial Weigh bridge / Truck Scale.
IP68 Heavy Duty Industrial 25 ton, 30 ton, 40 ton, 50 ton, 60 ton, 80 ton, 100 ton, 120 ton Weighbridge Truck Scale with affordable price in Bangladesh.
IP68 Series Weighbridge
GATCO - Global Asia Trading Company understands the needs of weighbridge users like no other organization. We offer a single reliable source for weighbridges, indicators, software, and service. All are backed by technical support and unrivaled nationwide service coverage only Bangladesh’s leading weighing company can provide.
Global Asia Trading Company provides
-
Very High Precision.
-
Heavy Duty, long-lasting range scale.
-
Online free maintenance and calibration system.
-
Customized Online Weighbridge Software.
-
Multiples scale in a single software.
-
Anti-theft mode: No one can steal weight.
-
Store management with Weighbridge Scale.
-
Operator Less Automatic Weighbridge Scale.
Platform Designs
...(Gatco Produce & Supply 2 basic type of platform)...

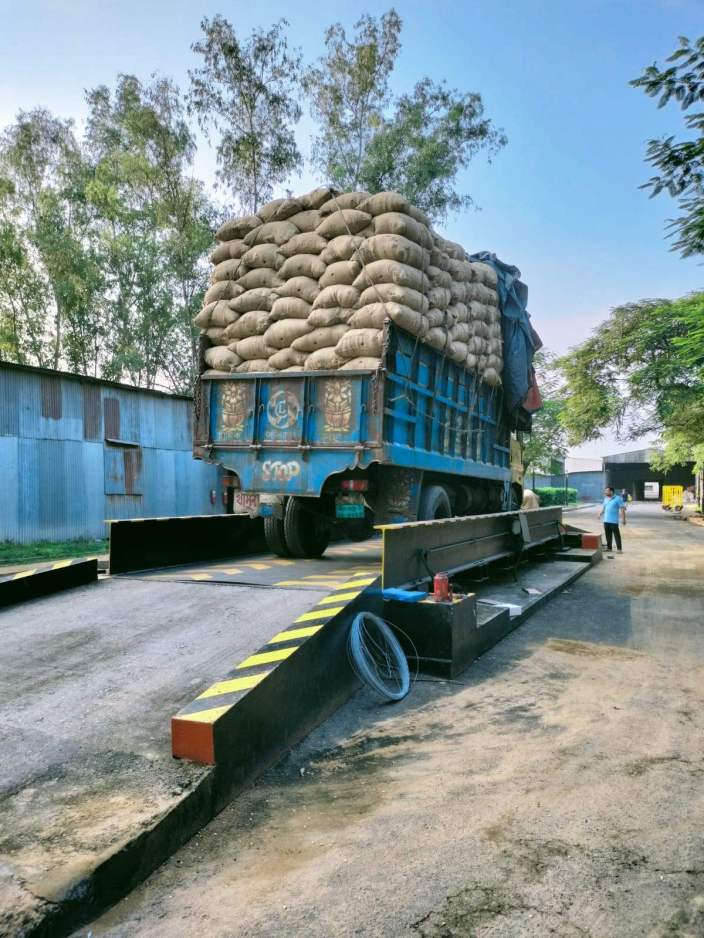

- Steel Platform
a) Pit type (Platform Top & Ground are on the same level)
b) Pit less ( Platform Top level is higher than Ground level)
Pit less

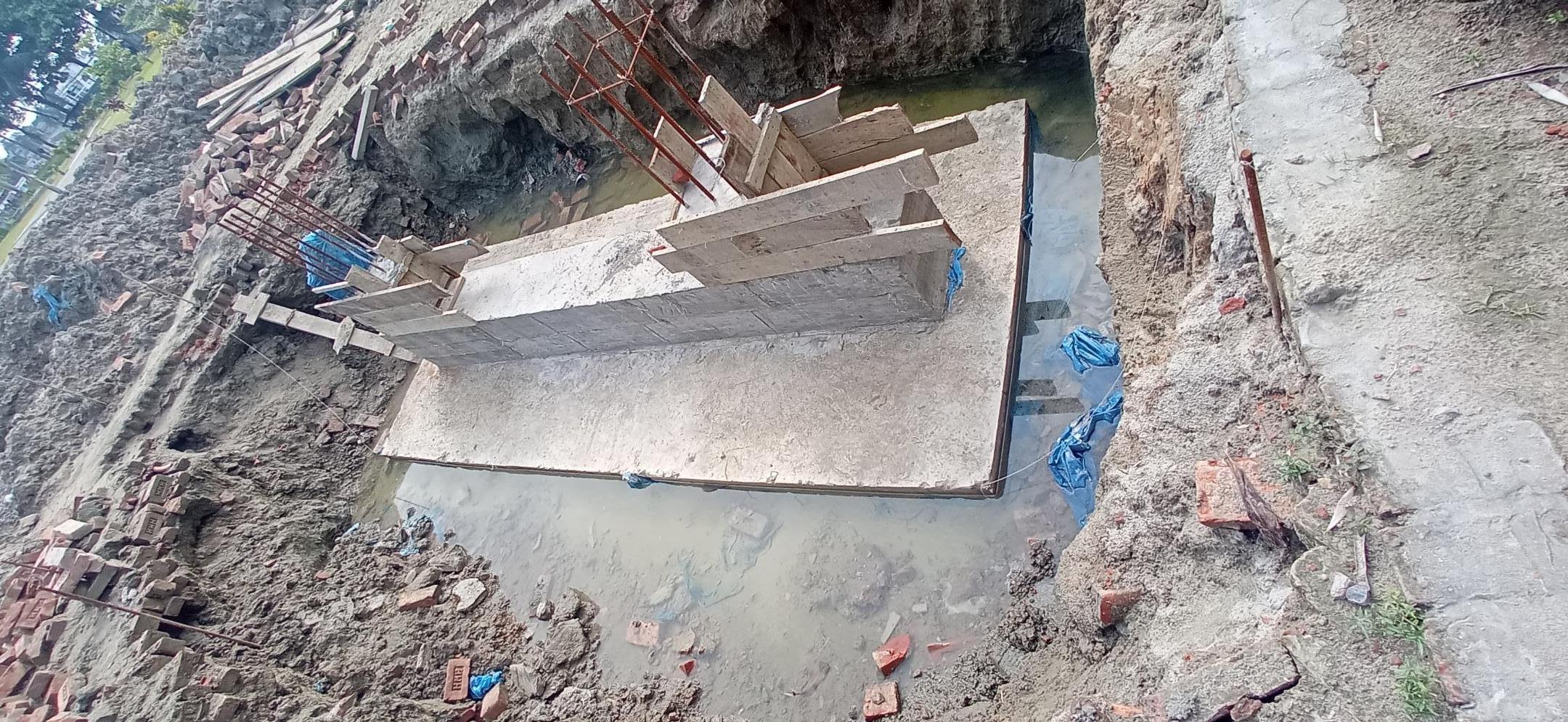

Pit Type
-

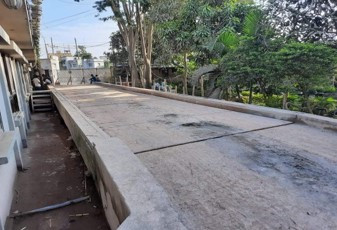

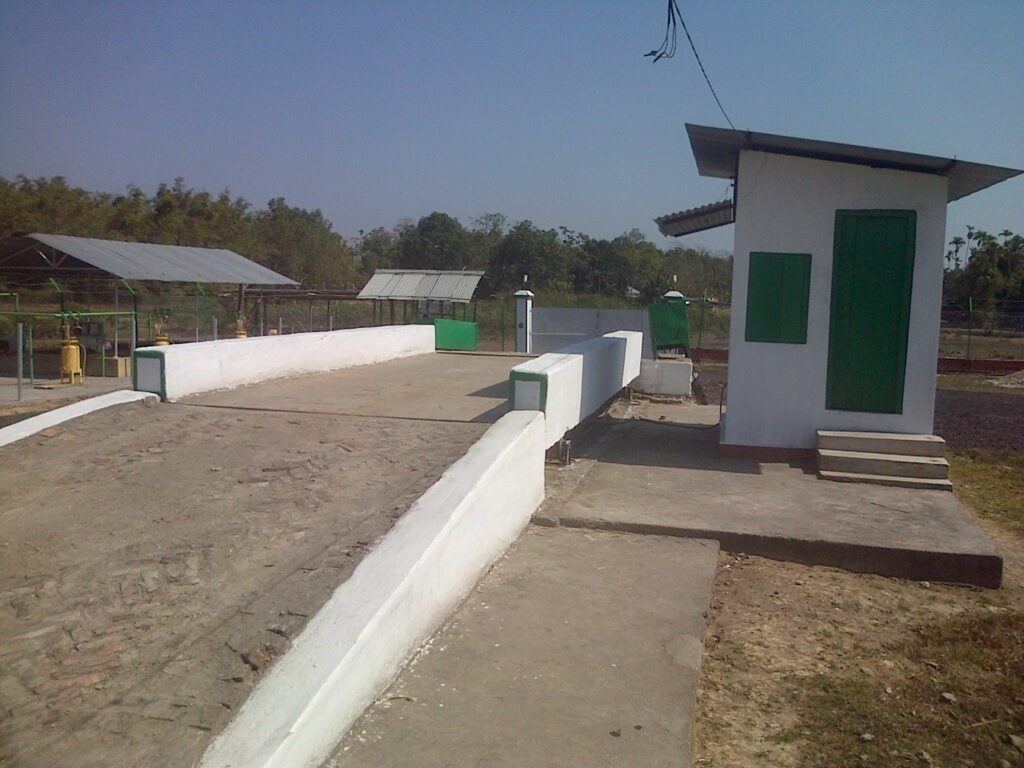

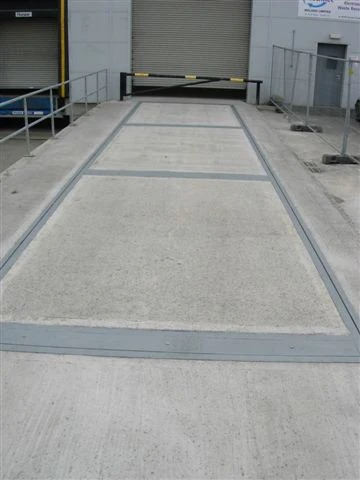

Concrete Platform
a) Pit type (Platform Top & Ground are on the same level)
b) Pit less (Platform Top level is higher than Ground level)
Pit Type
Pit less

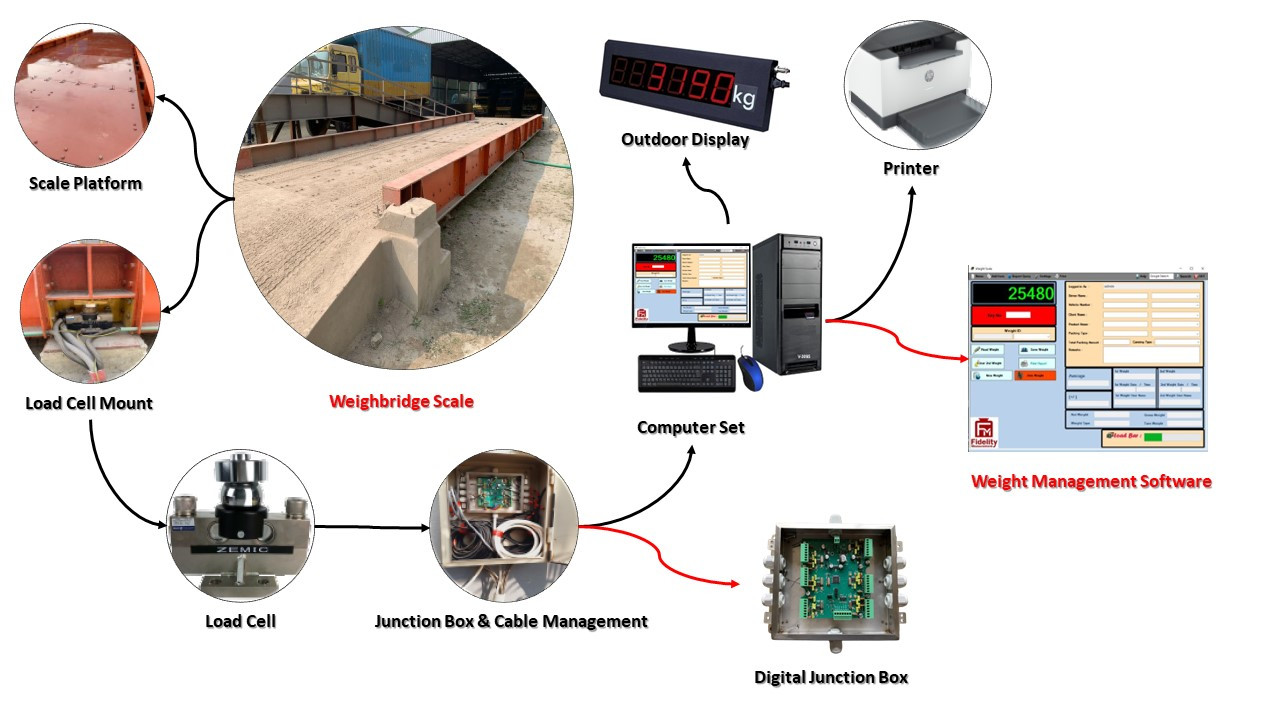

Standard Accessories:
-
Platform, Load cell, Digital Junction Box.
Optional Accessories:
-

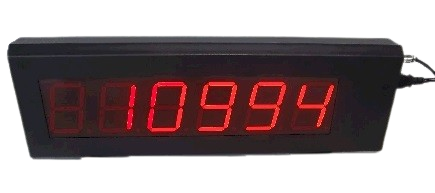

Computer, Printer, UPS, Weighing Software and Remote Display, Wireless Connection System.
Weighbridge Parts We used in Bangladesh.
Heavy quality Steel
We study & understand the customer/user needs. That's why we use High quality & heavy-duty steel. We use a minimum of 60-grade steel, Specially sourced from German ships.
The top plate minimum is 10 mm to 12 mm.

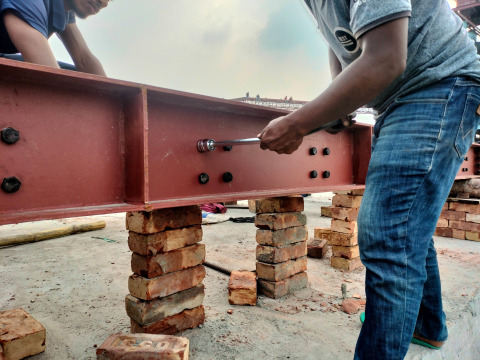

We manufactured the bottom steel. Custom-size H-Beams, cross beams 8 mm, and long beams 12 mm.
Heavy Duty Electronics

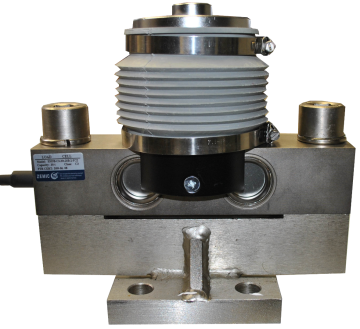

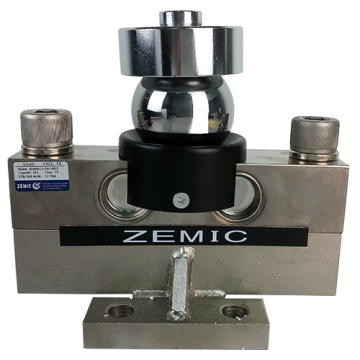

We use a load cell with a 30- 40-ton capacity. Brand: Zemic Europe & Zemic USA.

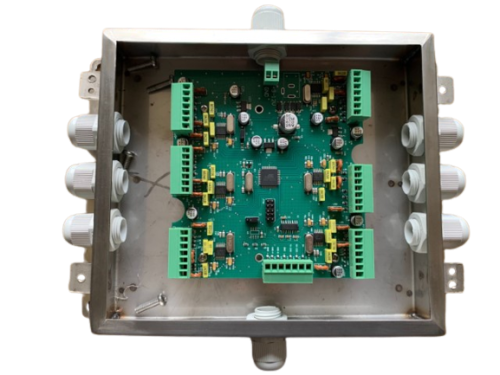

We use an IoT On-line digital junction Board Weight Scale Controller for the Weighbridge Truck Scale.
Weight Management Devices & HMI
Our Weight Scale management software is very user-friendly & easy to use, customizing reporting, printing, online data view, and Multiple Scales in one software facility.
The most advanced feature is we can see each load cell signal data & status.
Weighbridge Selection Guide
MS Steel Platform Series
SL. | Model | Platform Size | Type | Capacity | Division | No. of Loadcell | Commonly Best Usage for |
1.
|
MS Series
|
3 X 7 Meter
|
MS Steel Deck, Pit Type / Pit Less
|
25 / 30 / 40 Ton
|
5 / 5 / 5 Kg
|
4
| Tea Garden , Textile, Poultry Feed, Cement. |
2.
|
MS Series
|
3 X 8 Meter
|
MS Steel Deck, Pit Type / Pit Less
|
40 / 50 / 60 Ton
|
5 / 5 / 10 Kg
|
4 / 6 / 6
| Tea Garden , Textile, Poultry Feed, Cement. |
3.
|
MS Series
|
3 X 9 Meter
|
MS Steel Deck, Pit Type / Pit Less
|
40 / 50 / 60 Ton
|
5 / 10 / 20 Kg
|
4 / 6 / 6
| Textile, Poultry Feed, Cement, Steel, Agro Farm. |
4.
|
MS Series
|
3 X 10 Meter
|
MS Steel Deck, Pit Type / Pit Less
|
40 / 50 / 60 Ton
|
5 / 10 / 20 Kg
|
4 / 6 / 6
| Textile, Poultry Feed, Cement, Steel, Agro Farm. |
5.
|
MS Series
|
3 X 12 Meter
|
MS Steel Deck, Pit Type / Pit Less
|
60 / 80 Ton
|
20 / 20 Kg
|
6
| Poultry Feed, Cement, Steel, Commercial Scale. |
6.
|
MS Series
|
3 X 14 Meter
|
MS Steel Deck, Pit Type / Pit Less
|
80 Ton
|
20 Kg
|
6 / 8
| Poultry Feed, Cement, Steel, Commercial Scale. |
7.
|
MS Series
|
3 X 16 Meter
|
MS Steel Deck, Pit Type / Pit Less
|
80 / 100 Ton
|
20 Kg
|
8 / 8
| Poultry Feed, Cement, Steel, Commercial Scale. |
8.
|
MS Series
|
3 X 18 Meter
|
MS Steel Deck, Pit Type / Pit Less
|
80 / 100 / 120 Ton
|
20 / 20 / 40 Kg
|
8 / 10
| Poultry Feed, Cement, Steel, Commercial Scale. |
9.
|
MS-C Series
|
Custom
|
MS Steel Deck, Pit Type / Pit Less
|
Custom
|
Custom
|
Custom
|
Depend on usage & user condition.
|
Concrete Platform Series
SL. | Model | Platform Size | Type | Capacity | Division | No. of Loadcell | Commonly Best Usage for |
1.
|
C Series
|
3 X 7 Meter
|
Concrete Deck, Pit Type / Pit Less
|
25 / 30 / 40 Ton
|
5 / 5 / 5 Kg
|
4
|
Poultry Feed, Cement, Steel, Commercial Scale.
|
2.
|
C Series
|
3 X 8 Meter
|
Concrete Deck, Pit Type / Pit Less
|
40 / 50 / 60 Ton
|
5 / 5 / 10 Kg
|
4 / 6 / 6
|
Poultry Feed, Cement, Steel, Commercial Scale.
|
3.
|
C Series
|
3 X 9 Meter
|
Concrete Deck, Pit Type / Pit Less
|
40 / 50 / 60 Ton
|
5 / 10 / 20 Kg
|
4 / 6 / 6
|
Poultry Feed, Cement, Steel, Commercial Scale.
|
4.
|
C Series
|
3 X 10 Meter
|
Concrete Deck, Pit Type / Pit Less
|
40 / 50 / 60 Ton
|
5 / 10 / 20 Kg
|
4 / 6 / 6
|
Poultry Feed, Cement, Steel, Commercial Scale.
|
5.
|
C Series
|
3 X 12 Meter
|
Concrete Deck, Pit Type / Pit Less
|
60 / 80 Ton
|
20 / 20 Kg
|
6
|
Poultry Feed, Cement, Steel, Commercial Scale.
|
6.
|
C Series
|
3 X 14 Meter
|
Concrete Deck, Pit Type / Pit Less
|
80 Ton
|
20 Kg
|
6 / 8
|
Poultry Feed, Cement, Steel, Commercial Scale.
|
7.
|
C Series
|
3 X 16 Meter
|
Concrete Deck, Pit Type / Pit Less
|
80 / 100 Ton
|
20 Kg
|
8 / 8
|
Poultry Feed, Cement, Steel, Commercial Scale.
|
8.
|
C Series
|
3 X 18 Meter
|
Concrete Deck, Pit Type / Pit Less
|
80 / 100 / 120 Ton
|
20 / 20 / 40 Kg
|
8 / 10
|
Poultry Feed, Cement, Steel, Commercial Scale.
|
9.
|
C-C Series
|
Custom
|
Concrete Deck, Pit Type / Pit Less
|
Custom
|
Custom
|
Custom
|
Depend on usage & user condition.
|
Sample of a Multi Scale Modulation in Bangladesh by Global Asia.
Project Name :
|
Bogra Feed Mills.
|
Client Name :
|
C.P. Bangladesh Company Ltd.
|
Address :
|
Bogra WH, Fooltola Bamunia (Aria Bazar),
Demajani, Shajahanpur, Bogra
|
No of Scale :
|
Two weighbridge .
|
Weighbridge No 1
| |
Size :
|
18 X 3 Meter
|
Type :
|
Concrete Deck + Steel Frame Structure .
|
Capacity :
|
100 ton
|
Division :
|
20 Kg
|
No. of Loadcell :
|
8
|
Weighbridge No 2
| |
Size :
|
9 X 3 Meter
|
Type :
|
Steel Structure .
|
Capacity :
|
60 ton
|
Division :
|
5 Kg
|
No. of Loadcell :
|
6
|
Sample of a Multi Scale Modulation in Bangladesh by Global Asia.
Project Name :
|
Premier Cement
|
Client Name :
|
Premier Cement Mills Ltd.
|
Address :
|
MunshiGanj , Mukterpur
|
No of Scale :
|
Three weighbridge .
|
Weighbridge No 1
| |
Size :
|
18 X 3 Meter
|
Type :
|
Steel Structure .
|
Capacity :
|
100 ton
|
Division :
|
20 Kg
|
Weighbridge No 2
| |
Size :
|
12 X 3 Meter
|
Type :
|
Steel Structure .
|
Capacity :
|
80 ton
|
Division :
|
10 Kg
|
Weighbridge No 3
| |
Size :
|
9 X 3 Meter
|
Type :
|
Steel Structure .
|
Capacity :
|
80 ton
|
Division :
|
10 Kg
|
